LT3

from €13,600.00

For getting an academic/OEM discount or for getting a quotation, please contact us.

Three axis low profile (20mm) stage (X, Y, Z). Easy to integrate into inverted microscope, most of the time combined with a coarse positioning stage.

Controller included (USB optional).

Range of motion:
Controller:
Quantity:
Add To Cart

For getting an academic/OEM discount or for getting a quotation, please contact us.

Three axis low profile (20mm) stage (X, Y, Z). Easy to integrate into inverted microscope, most of the time combined with a coarse positioning stage.

Controller included (USB optional).

For getting an academic/OEM discount or for getting a quotation, please contact us.

Three axis low profile (20mm) stage (X, Y, Z). Easy to integrate into inverted microscope, most of the time combined with a coarse positioning stage.

Controller included (USB optional).

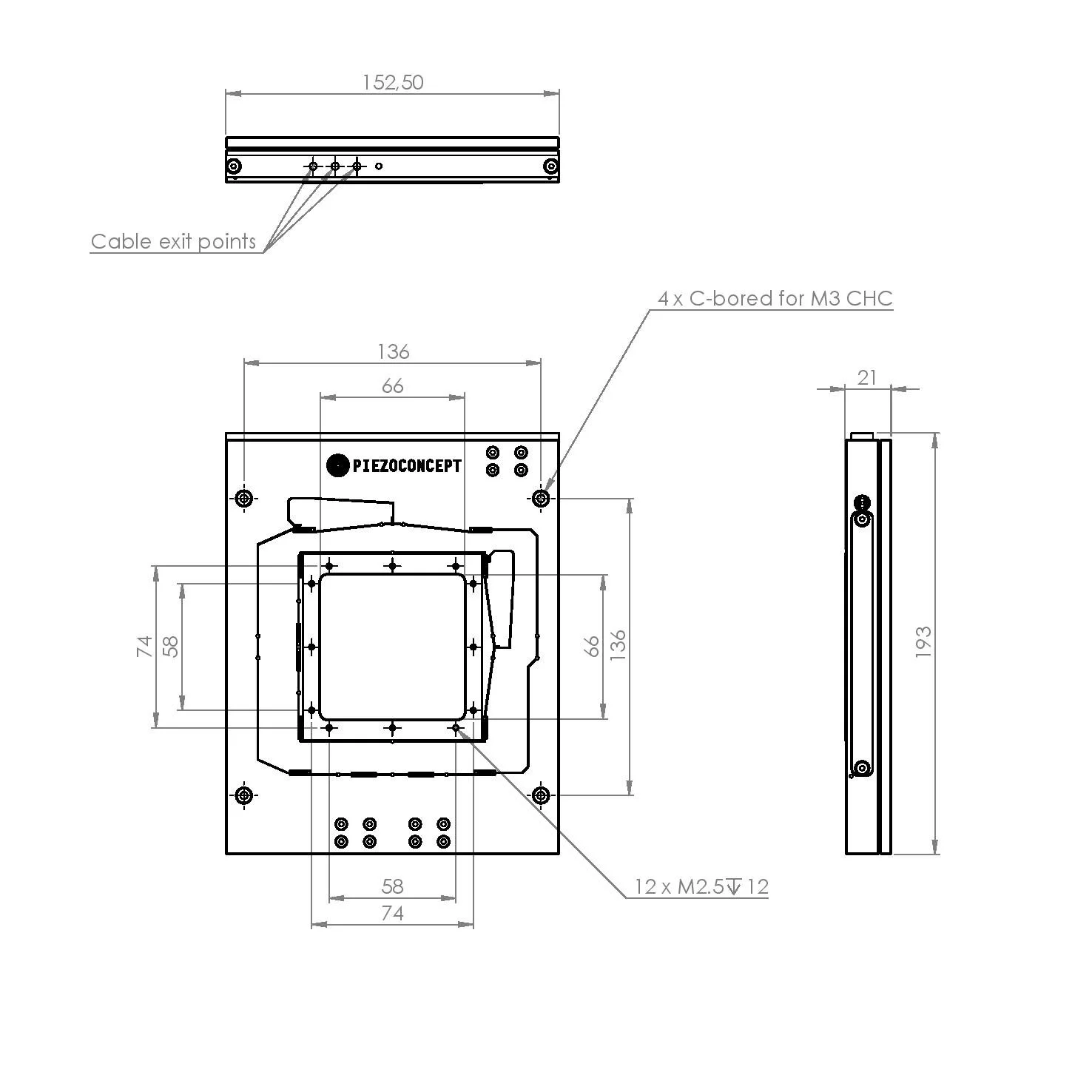

The LT3 is a 3-axis ultra-low profile nanopositioner primarily designed to be integrated in any kind of inverted microscope. This piezostage can be combined with a coarse positioning Microstage (See our Hybrid System).

The standard LT3 is made in aluminium but for Bruker AFM upgrade, the LT3.100 (100µm version) is available in Invar, which allows higher thermal stability.


*Higher load on demand.
