Microstages & Hybrid Systems

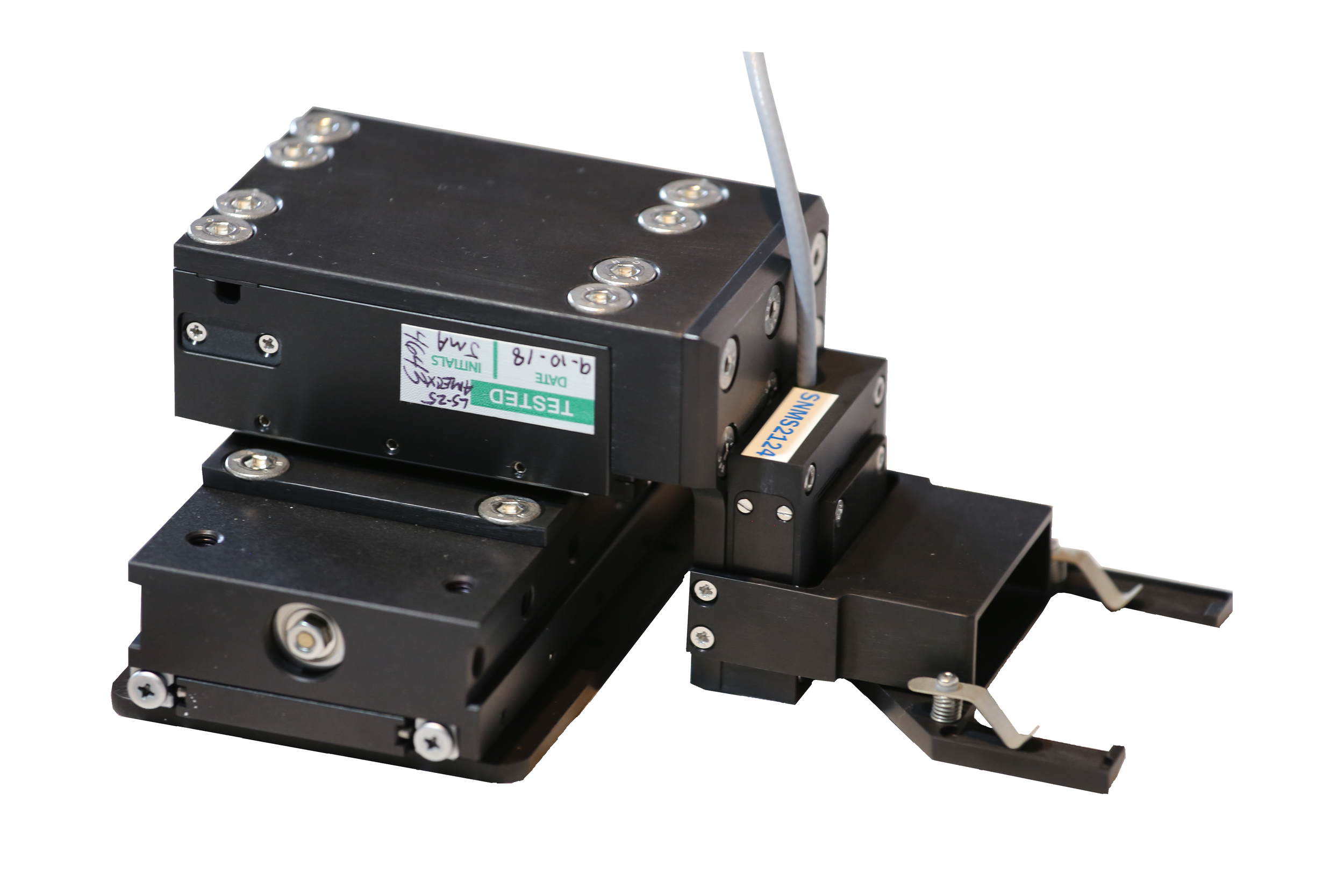

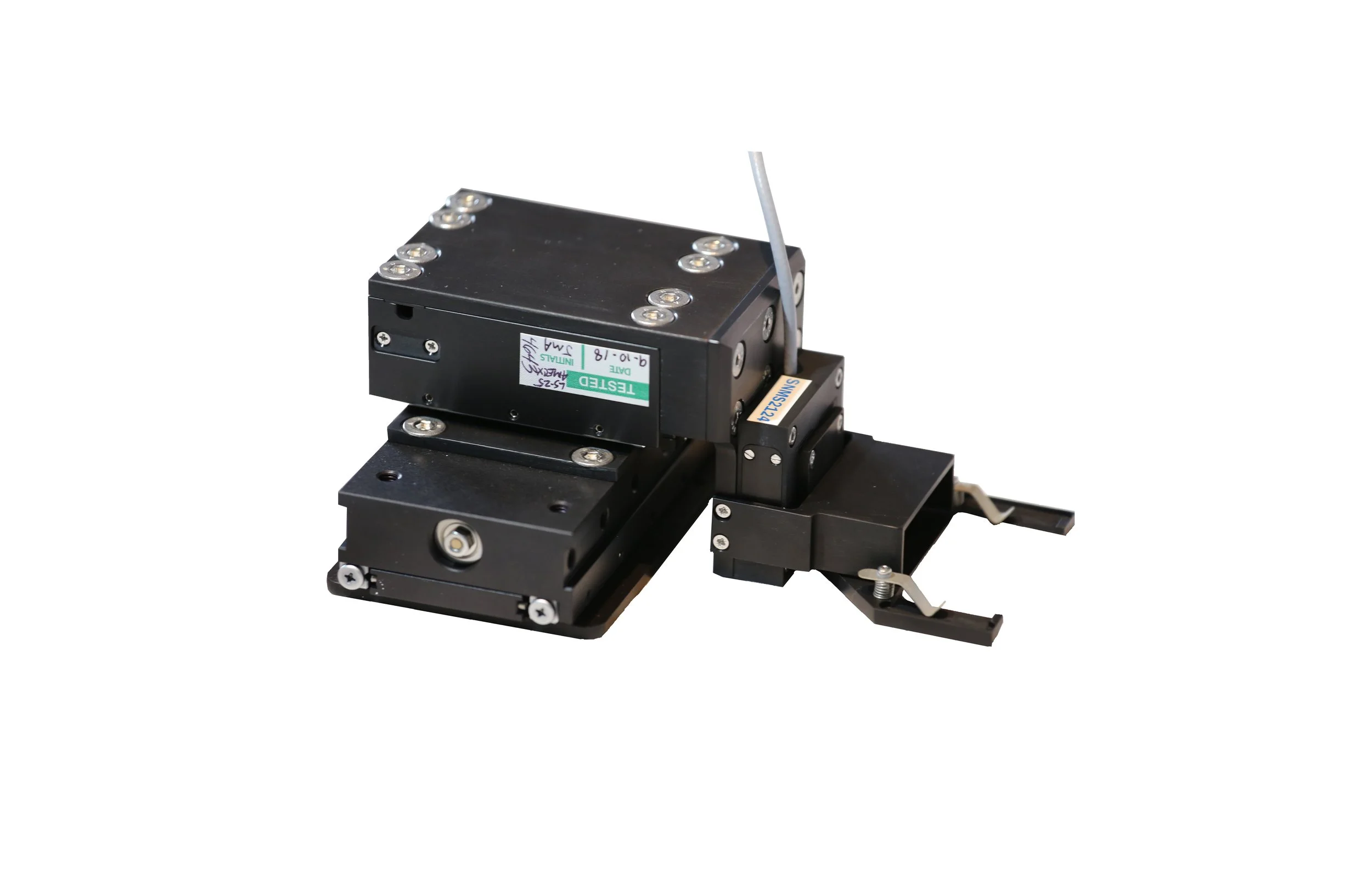

Our hybrid systems are easy to operate and affordable. They combine a DC-motorized or manually driven microstage and one of the following piezostage: LT-Z, BIO2, BIO3, LT2, LT3, LFHS2, LFHS3, LF1, LF2, LF3, LTHS2, LTHS3, SPM3 and MWP2.600.

The integrated nanopositioning systems have the lowest profiles available and provide sub-nanometer resolution under closed loop control.

Depending on the model, those systems can be fully integrated with inverted optical microscopes (ZEISS, OLYMPUS, NIKON, LEICA).

If you chose to buy a complete hybrid system, you’ll need to select firstly, one of the manual microstages we propose below and secondly, a compatible piezostage (an hybrid system is featured on their '“Related products” section).

Compatible piezostages



LTZ

Range of motion Z (µm) 100 - 200 - 300 - 500
Velocity Standard
Aperture 128.5 x 86.5 mm
"Well-Plate Sized"

LF2

Range of motion X Y (µm)
100 - 200 - 300
Velocity Standard
Aperture 66 x 66 mm

LT3

Range of motion X Y Z (µm)
100 - 200 - 300
Velocity Standard
Aperture 66 x 66 mm

SPM3

Range of motion XY (µm)
75
Range of motion Z (µm)
5 - 10 - 25 - 50
Velocity High Speed

LF1

Range of motion X (µm) 100 - 200 -300
Velocity Standard
Aperture 66 x 66 mm

LTHS2

Range of motion X Y (µm)
75
Velocity High Speed
Aperture 54 x 83.6 mm

LF3

Range of motion XY (µm)
100 - 200 - 300
Range of motion Z (µm)
50
Velocity High Speed
Aperture 66 x 66 mm

BIO2

Range of motion X Y (µm)
100 - 200 - 300
Velocity Standard
Aperture 54 x 83.6 mm

LFHS2

Range of motion X Y (µm)
75
Velocity High Speed
Aperture 66 x 66 mm

LTHS3

Range of motion XY (µm)
75
Range of motion Z (µm)
50
Velocity High Speed
Aperture 54 x 83.6 mm

LT2

Range of motion X Y (µm)
100- 200 - 300
Velocity Standard
Aperture 66 x 66 mm

BIO3

Range of motion X Y Z (µm)
100 - 200 - 300
Velocity Standard
Aperture 54 x 83.6 mm

LFHS3

Range of motion XY (µm)
75
Range of motion Z (µm)

50
Velocity High Speed
Aperture 66 x 66 mm
